Take-Home Exercise 2: VAST Challenge 2023, Mini-Challenge 2

This take-home exercise is based on VAST Challenge 2023’s Mini-Challenge 2.

1 The Brief

1.1 Setting the Scene

The following text is lifted from the Challenge webpage. Emphases are my own.

The country of Oceanus has sought FishEye International’s help in identifying companies possibly engaged in illegal, unreported, and unregulated (IUU) fishing. As part of the collaboration, FishEye’s analysts received import/export data for Oceanus’ marine and fishing industries. However, Oceanus has informed FishEye that the data is incomplete. To facilitate their analysis, FishEye transformed the trade data into a knowledge graph. Using this knowledge graph, they hope to understand business relationships, including finding links that will help them stop IUU fishing and protect marine species that are affected by it. FishEye analysts found that node-link diagrams gave them a good high-level overview of the knowledge graph. However, they are now looking for visualizations that provide more detail about patterns for entities in the knowledge graph. There are two main parts to this analysis.

First, FishEye knows from past experience that companies caught fishing illegally will shut down but will then often start up again under a different name. FishEye wants your help to visualize temporal patterns so they can compare the activities of companies over time to determine if the companies have returned to their nefarious acts.

Second, FishEye has been using several tools, including artificial intelligence, to reason on the knowledge graph and suggest links that could extend the dataset. They have supplied 12 groups of link suggestions and need your help evaluating these groups to identify which tools are most reliable for completing the graph. FishEye is especially interested in identifying new temporal patterns or anomalies that are only present when new links are added.

Using visual analytics, can you help FishEye identify companies that may be engaged in illegal fishing?

1.2 The Task

Using appropriate static and interactive statistical graphics methods, help FishEye identify companies that may be engaged in illegal fishing, by answering one of the following four questions listed on the Mini-Challenge 2 webpage:

1. Use visual analytics to identify temporal patterns for individual entities and between entities in the knowledge graph FishEye created from trade records. Categorize the types of business relationship patterns you find.

2. Evaluate the sets of predicted knowledge graph links FishEye has provided using visual analytics. Which sets are most reliable for completing the graph?

3. Illustrate how your visual analytics approach can be used to identify new patterns and/or anomalies that are present in the knowledge graph after you have added the links you deemed reliable in question 2.

4. Identify companies that fit a pattern of illegal fishing. Use visualizations to support your conclusions and your confidence in them.

I will be attempting the first question:

Use visual analytics to identify temporal patterns for individual entities and between entities in the knowledge graph FishEye created from trade records. Categorize the types of business relationship patterns you find.

2 Libraries and Packages

Show Code

pacman::p_load(jsonlite, readxl, fuzzyjoin, igraph, tidygraph, tidytext, ggraph, ggradar, fmsb, patchwork, GGally, colorspace,
               visNetwork, lubridate, clock,
               tidyverse, magrittr, graphlayouts)

3 Data Preparation

3.1 Data Overview

According to the provided data dictionary, the main graph has 34,552 nodes and 5,464,092 directed edges (note: file size ~1.55GB). Each edge represents a shipment from a shipper to a receiver.

3.1.1 Node Attributes

Attribute	Data Type (assumed)	Description
id	char	Name of the company that originated (or received) the shipment
shpcountry	char	Country the company most often associated with when shipping
rcvcountry	char	Country the company most often associated with when receiving
dataset	char	Always ‘MC2’

3.1.2 Edge Attributes

Attribute	Data Type (assumed)	Description
arrivaldate	date	Date the shipment arrived at port in YYYY-MM-DD format
hscode	char	Harmonized System code for the shipment. Can be joined with the hscodes table to get additional details
valueofgoods_omu	integer	Customs-declared value of the total shipment, in Oceanus Monetary Units OMU
volumeteu	integer	The volume of the shipment in ‘Twenty-foot equivalent units’, roughly how many 20-foot standard containers would be required. Actual number of containers may have been different as there are 20ft and 40ft standard containers and tankers that do not use containers)
weightkg	integer	The weight of the shipment in kilograms (if known)
dataset	char	Always ‘MC2’
type	char	Always ‘shipment’ for MC2
generated_by	char	Name of the program that generated the edge. (Only found on ‘bundle’ records)

3.2 Data Cleaning & Conversion to Graph

3.2.1 Main Graph

Let’s load the main graph JSON data first. (This takes a while due to the size of the file.) Then persist it for faster loading next time.

if (file.exists('data/mc2.rds')) {
  MC2 <- read_rds('data/mc2.rds')
} else {
   MC2 <- fromJSON('data/mc2_challenge_graph.json')
   write_rds(MC2, 'data/mc2.rds')
}

Then, we convert the data to a “tidy” format using tidygraph methods, excluding unneeded columns at the same time. (Note: there’s a discrepancy between the data dictionary and data — there’s no type attribute found in the edges data.)

MC2_nodes <- as_tibble(MC2$nodes) %>%
  select(!dataset)

MC2_edges <- as_tibble(MC2$links) %>%
  select(!dataset)

Next, we double-check the columns and correct data types as necessary.

• We discover that there is an additional attribute in edges, named valueofgoodsusd, which we will leave in place for now.

• The edge attribute arrivaldate has been interpreted as a char type. Let’s change it to a date type:

MC2_edges %<>% mutate(arrivaldate = ymd(arrivaldate))

• The HS Codes appear problematic. According to online research, the first 6 digits of HS Code should be consistent across countries, while the subsequent digits may differ. However, the most common HS code in the data, 306170, is not even a valid HS code. My suspicion is that there is a missing leading 0, i.e. the correct code is actually 030617 (possibly with subsequent digits). This could have been the result of incorrect data storage/export: the leading 0 may not have been stored, and the export function may have simply extracted the first 6 digits of the data. Using the full list of HS Codes published by Singapore Customs as a reference, let’s examine what HS Codes might be erroneous:

Show Code

# HS Codes provided by Singapore Customs
tradenet_hscodes <- read_xls('data/AllHSCode20230527155627.xls')

code_6d <- tradenet_hscodes %>%
  transmute(hscode = substring(`HS Code`,1,6)) %>%
  pull(hscode)

MC2_invalid_hscodes <- MC2_edges %>%
  select(hscode) %>%
  group_by(hscode) %>%
  summarise(cnt = n()) %>%
  mutate(validcode = hscode %in% code_6d) %>%
  filter(validcode == FALSE) %>%
  pull(hscode)

Among these, since our use case involves fishing, we would be particularly interested in correcting HS Codes related to fish, seafood, etc. From the World Customs Organization website, these would be codes from Chapter 3 (Fish and crustaceans, molluscs and other aquatic invertebrates), specifically 0301-0309 (erroneously coded as 301xxx to 309xxx in our data). So let’s correct these:

Show Code

MC2_edges %<>%
  mutate(hscode_corrected = if_else(hscode %in% MC2_invalid_hscodes & strtoi(substr(hscode,1,3))>=301 & strtoi(substr(hscode,1,3))<=309,
                                    paste0('0', substr(hscode,1,5)),
                                    hscode)) %>%
  select(!hscode) %>%
  rename(hscode = hscode_corrected)

Let’s check for possible duplicate shipment records. We see there are about 100K duplicate shipment records in the dataset. We can remove them when we create the edges for the graph.

MC2_edges %>%
  distinct() %>%
  summarise(n())

# A tibble: 1 × 1
    `n()`
    <int>
1 5309087

Finally, we create a tidygraph object from the nodes and edges data, using only fishing-related edges (i.e. starting with 03) and their corresponding nodes:

# reorder columns to what tidygraph expects
MC2_edges %<>%
  filter(substr(hscode,1,2)=='03') %>%
  relocate(source, target) %>%
  distinct()

MC2_node_ids <- bind_rows(
  MC2_edges %>% select(id=source),
  MC2_edges %>% select(id=target)) %>%
  distinct()

MC2_nodes %<>%
  filter(id %in% pull(MC2_node_ids,id)) %>%
  relocate(id)


MC2_graph <- tbl_graph(nodes = MC2_nodes,
                       edges = MC2_edges,
                       directed = TRUE)

After cutting down our data, we are left with about a quarter of the original number of nodes, and a tenth of the original number of edges:

print(MC2_nodes %>% summary())

      id             shpcountry         rcvcountry
 Length:9048        Length:9048        Length:9048
 Class :character   Class :character   Class :character
 Mode  :character   Mode  :character   Mode  :character

print(MC2_edges %>% summary())

    source             target           arrivaldate         valueofgoods_omu
 Length:547725      Length:547725      Min.   :2028-01-01   Min.   :    5705
 Class :character   Class :character   1st Qu.:2029-11-29   1st Qu.:  398655
 Mode  :character   Mode  :character   Median :2031-09-08   Median :  760180
                                       Mean   :2031-08-15   Mean   : 2118449
                                       3rd Qu.:2033-05-28   3rd Qu.: 1654955
                                       Max.   :2034-12-30   Max.   :44744530
                                                            NA's   :547566
   volumeteu            weightkg         valueofgoodsusd        hscode
 Min.   :   0.0000   Min.   :        0   Min.   :        0   Length:547725
 1st Qu.:   0.0000   1st Qu.:    18150   1st Qu.:    75905   Class :character
 Median :   0.0000   Median :    20360   Median :   133075   Mode  :character
 Mean   :   0.3802   Mean   :    22716   Mean   :   164421
 3rd Qu.:   0.0000   3rd Qu.:    23015   3rd Qu.:   196102
 Max.   :1215.0000   Max.   :131710670   Max.   :111432620
 NA's   :606                             NA's   :19914

3.2.1.1 Data Completeness

Let’s do a check on missing values:

colMeans(is.na(MC2_nodes))

        id shpcountry rcvcountry
 0.0000000  0.3322281  0.1320734

colMeans(is.na(MC2_edges))

          source           target      arrivaldate valueofgoods_omu
     0.000000000      0.000000000      0.000000000      0.999709708
       volumeteu         weightkg  valueofgoodsusd           hscode
     0.001106395      0.000000000      0.036357661      0.000000000

Here, we can see that some attributes have a very high proportion of missing values: shpcountry (33%) and valueofgoods_omu (99.9%). Let’s just bear this in mind for now.

4 Exploratory Data Analysis

4.1 Entities

4.1.1 Companies

Of the companies, about 30% (2,797) do not have a name, only an ID number:

Show Code

MC2_nodes %>%
  select(id) %>%
  distinct() %>%
  filter(str_detect(id, regex(r"(-\d+$)")))

# A tibble: 2,797 × 1
   id
   <chr>
 1 -1143
 2 -6894
 3 -12516
 4 -1515
 5 -193
 6 -54
 7 -21759
 8 -214
 9 -987
10 -754
# ℹ 2,787 more rows

4.1.2 Countries

Let’s see which countries appear most frequently ship to, and receive shipments from, Oceanus. First, count the countries:

Show Code

MC2_nodes_shpToOceanus <- MC2_nodes %>%
  filter(shpcountry!='Oceanus' & rcvcountry=='Oceanus') %>%
  group_by(shpcountry) %>%
  filter(!is.na(shpcountry)) %>%
  summarise(count = n())

MC2_nodes_rcvFrOceanus <- MC2_nodes %>%
  filter(shpcountry=='Oceanus' & rcvcountry!='Oceanus') %>%
  group_by(rcvcountry) %>%
  filter(!is.na(rcvcountry)) %>%
  summarise(count = n())

# unused for now
MC2_nodes_gathered <- MC2_nodes %>%
  filter(shpcountry=='Oceanus' | rcvcountry=='Oceanus') %>%
  gather("shprcvcountry", "country", -id, na.rm = TRUE) %>%
  group_by(country, shprcvcountry) %>%
  filter(country!='Oceanus') %>%
  summarise(count=n())
  # spread(shprcvcountry, count, fill = 0)

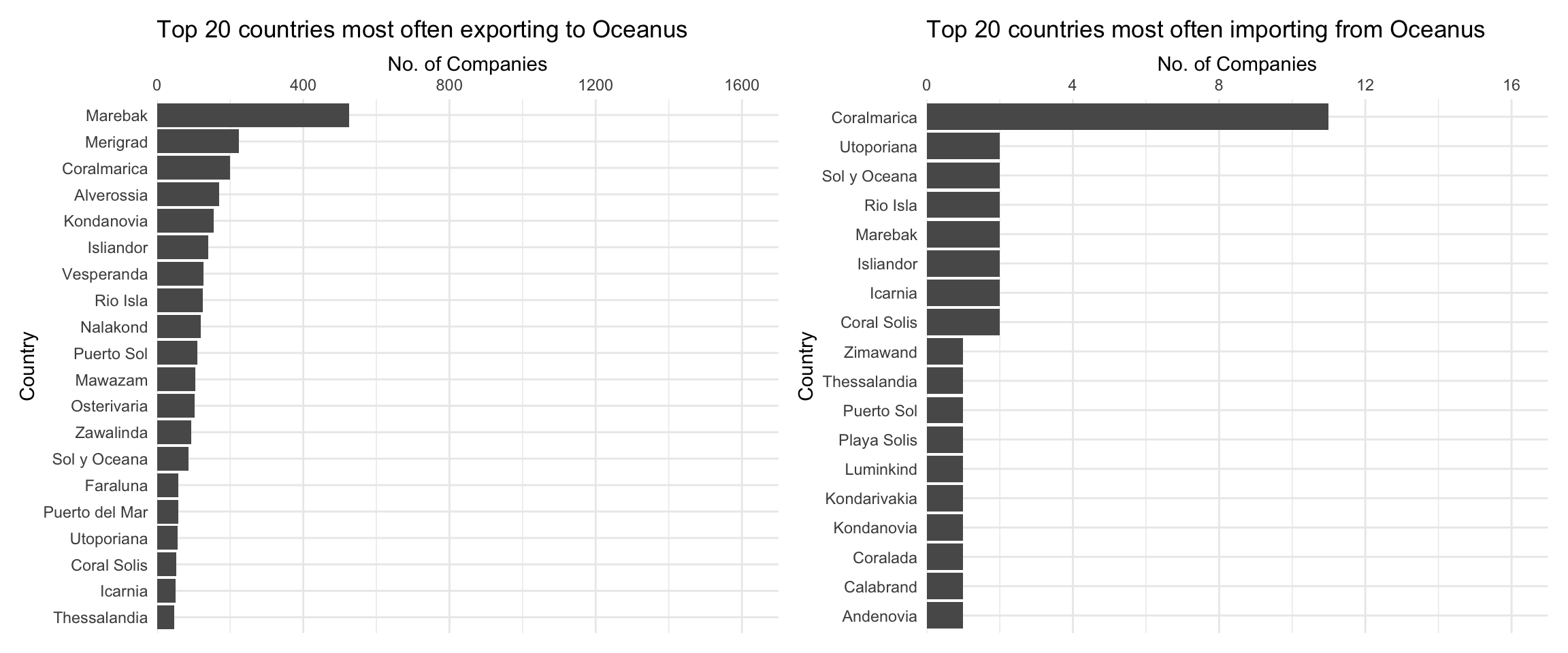

Then, plot the countries:

Show Code

p1 <- ggplot(slice_max(MC2_nodes_shpToOceanus, order_by = count, n=20),
       aes(y=fct_reorder(shpcountry, count),
           x=count)) +
  geom_col() +
  scale_x_continuous(name = 'No. of Companies', position='top', limits=c(0,1700), expand=c(0,0)) +
  scale_y_discrete(name = 'Country') +
  theme_minimal() +
  theme(axis.ticks.y=element_blank()) +
  labs(title = "Top 20 countries most often exporting to Oceanus",
       )

p2 <- ggplot(slice_max(MC2_nodes_rcvFrOceanus, order_by = count, n=20, with_ties = FALSE),
       aes(y=fct_reorder(rcvcountry, count),
           x=count)) +
  geom_col() +
  scale_x_continuous(name = 'No. of Companies', position='top', limits=c(0,17), expand=c(0,0)) +
  scale_y_discrete(name = 'Country') +
  theme_minimal() +
  theme(axis.ticks.y=element_blank()) +
  labs(title = "Top 20 countries most often importing from Oceanus",
       )

p1 + p2

From the above graph, we can see that for companies that have Oceanus as their most common receiving country, the most common shipping country is Marebak. On the other hand, for companies that have Oceanus as their most common shipping country, the most common receiving country is Coralmarica. Note the dramatically different x-axis scales: far more most commonly companies ship to Oceanus than receive from Oceanus.

4.2 Shipments

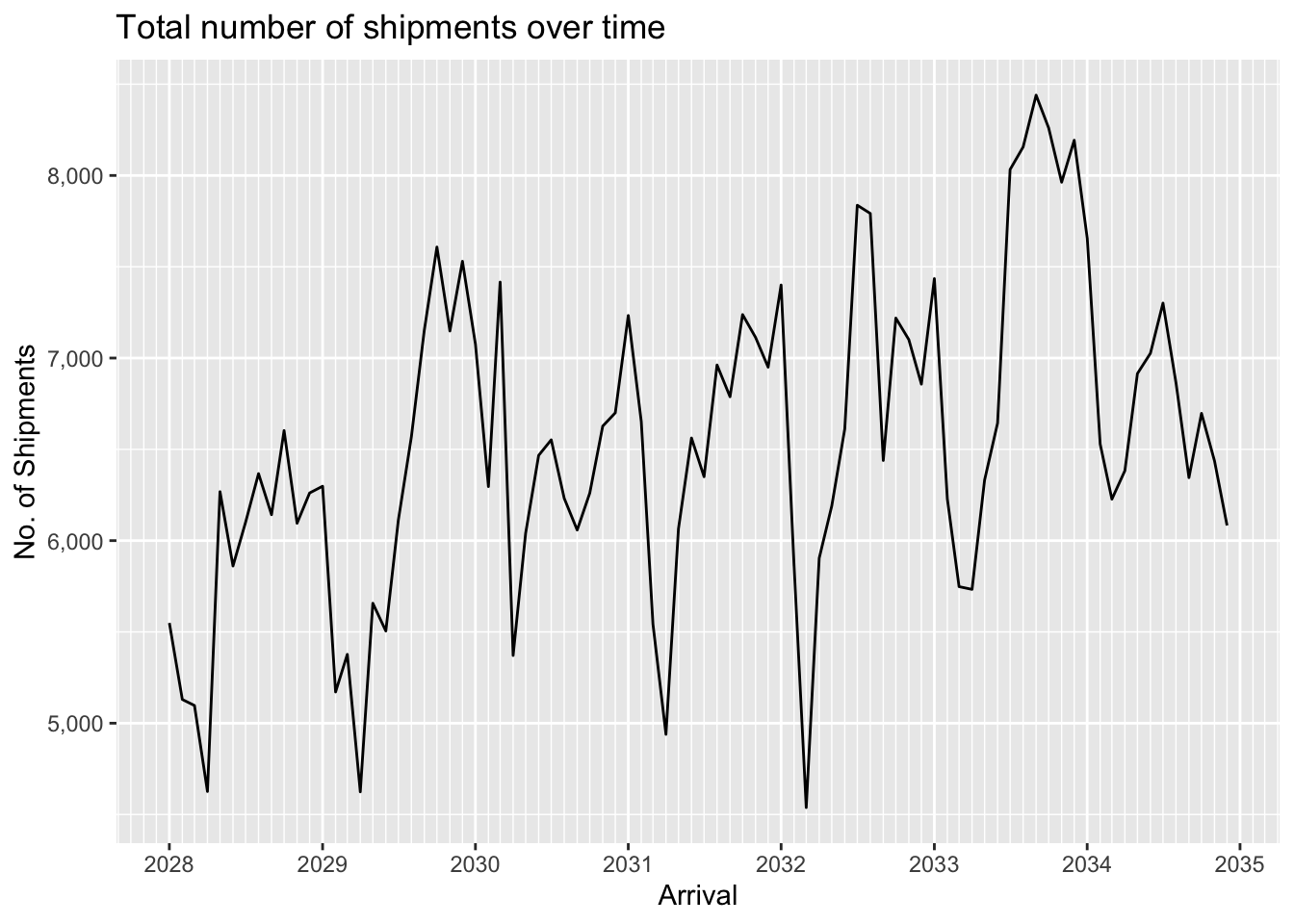

4.2.1 Number of shipments over time

Show Code

ggplot(MC2_edges %>%
         group_by(arrivalmonthyear=floor_date(arrivaldate, unit ='month')) %>%
         summarise(count = n(),
                   totalvalue_omu = sum(valueofgoods_omu, na.rm = TRUE),
                   totalvalue_usd = sum(valueofgoodsusd, na.rm = TRUE)),
       aes(x=arrivalmonthyear)) +
  scale_x_date(name = 'Arrival', date_breaks = 'year', date_minor_breaks = 'month', date_labels = '%Y') +
  scale_y_continuous(name = 'No. of Shipments', labels = scales::comma) +
  geom_line(aes(y=count)) +
  # geom_line(aes(y=totalvalue_omu), color='red') +
  # geom_line(aes(y=totalvalue_usd), color='blue') +
  labs(title = "Total number of shipments over time")

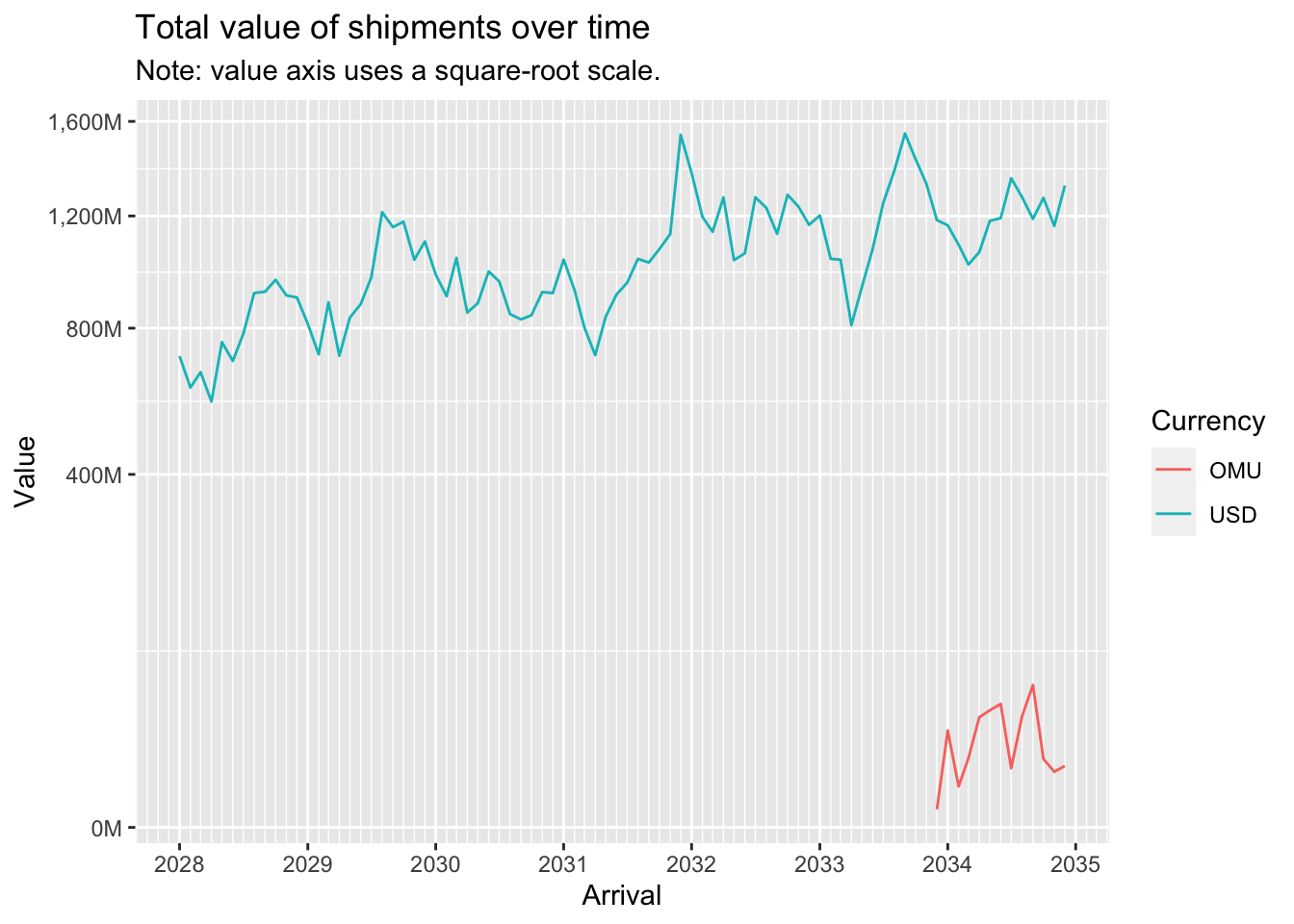

4.2.2 Total value of shipments over time

We can see that data for the value of shipments in OMU is only available for a short period in 2034-2035. In contrast value of shipments in USD is available throughout the period, and displays seasonality as well as an overall upward trend. The seasonality is probably to be expected since fishing is seasonally affected.

Show Code

ggplot(MC2_edges %>%
         group_by(arrivalmonthyear=floor_date(arrivaldate, unit ='month')) %>%
         summarise(count = n(),
                   totalvalue_omu = sum(valueofgoods_omu, na.rm = TRUE),
                   totalvalue_usd = sum(valueofgoodsusd, na.rm = TRUE)) %>%
         pivot_longer(c(totalvalue_omu, totalvalue_usd), names_to = "currency", values_to = "valueofgoods") %>%
         mutate(valueofgoods = na_if(valueofgoods, 0)),
       aes(x=arrivalmonthyear,
           color=currency)) +
  scale_x_date(name = 'Arrival', date_breaks = 'year', date_minor_breaks = 'month', date_labels = '%Y') +
  scale_y_sqrt(name = 'Value', labels = scales::label_comma(suffix = "M", scale=1e-6)) +
  geom_line(aes(y=valueofgoods)) +
  scale_color_discrete(name = 'Currency', labels = c('OMU', 'USD')) +
  # geom_line(aes(y=count)) +
  # geom_line(aes(y=totalvalue_omu), color='red') +
  # geom_line(aes(y=totalvalue_usd), color='blue') +
  labs(title = "Total value of shipments over time",
       subtitle = "Note: value axis uses a square-root scale.")

4.2.3 Relationship between shipment value and size

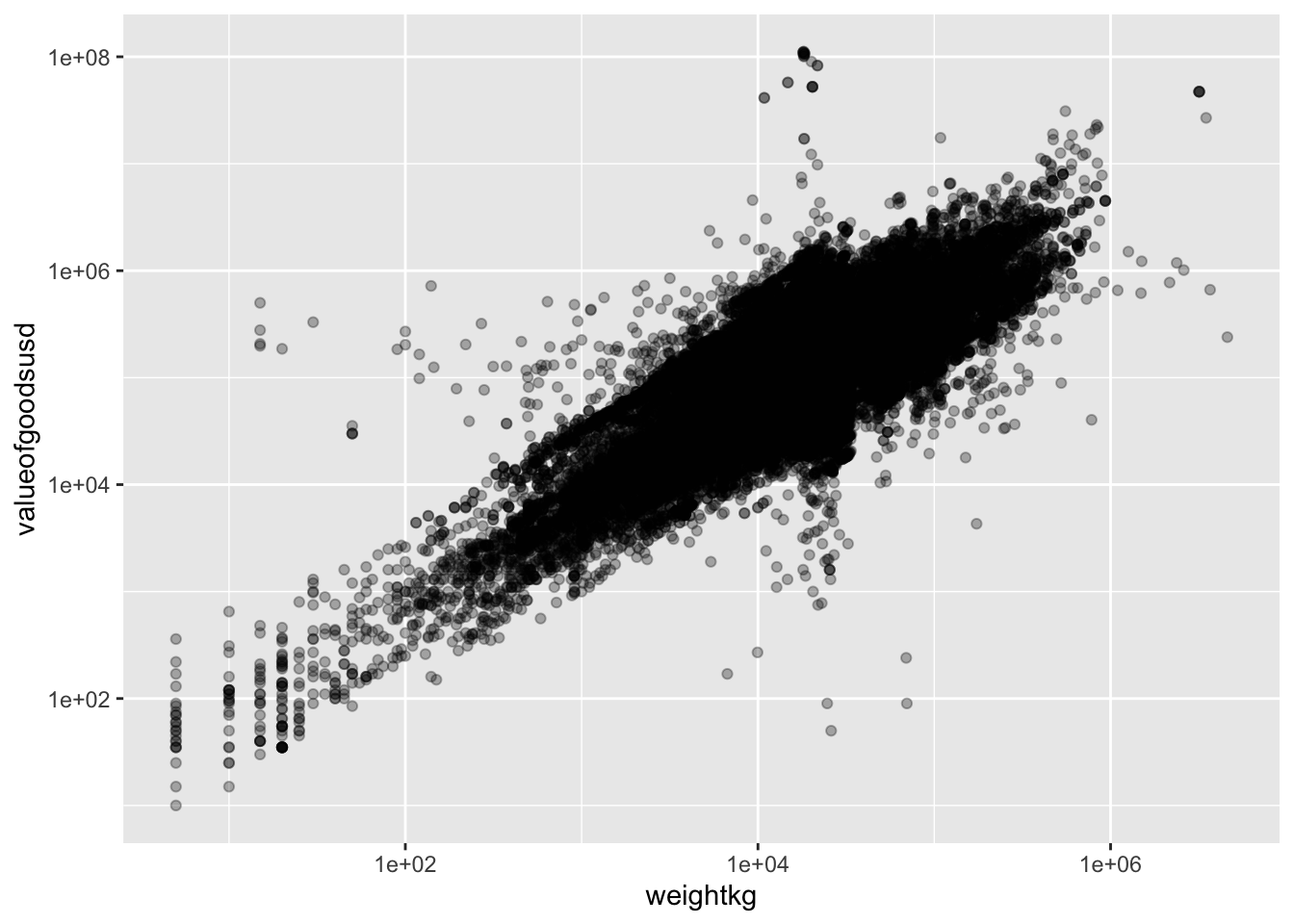

A log-log plot of shipment value (in USD) against shipment weight (in kg) shows an almost straight line, indicating a power relationship.

Show Code

ggplot(MC2_edges %>% drop_na(valueofgoodsusd, weightkg) %>% filter(!valueofgoodsusd==0 & !weightkg==0),
       aes(x=weightkg,
           y=valueofgoodsusd)) +
  geom_point(alpha=0.3) +
  scale_y_log10() +
  scale_x_log10()

4.2.4 Aggregating Edges

Now let’s aggregate the edges (shipments) to reduce the number of edges to work with to a more manageable number:

Show Code

MC2_edges_agg <- MC2_edges %>%
  group_by(source,target) %>%
  summarise(shipment_count = n(),
            arrivaldate_earliest = min(arrivaldate),
            arrivaldate_latest = max(arrivaldate))

print(MC2_edges_agg %>% summary())

    source             target          shipment_count     arrivaldate_earliest
 Length:35895       Length:35895       Min.   :    1.00   Min.   :2028-01-01
 Class :character   Class :character   1st Qu.:    1.00   1st Qu.:2028-12-22
 Mode  :character   Mode  :character   Median :    2.00   Median :2030-07-31
                                       Mean   :   15.26   Mean   :2030-11-21
                                       3rd Qu.:    8.00   3rd Qu.:2032-08-27
                                       Max.   :10876.00   Max.   :2034-12-29
 arrivaldate_latest
 Min.   :2028-01-01
 1st Qu.:2030-01-09
 Median :2032-01-09
 Mean   :2031-12-07
 3rd Qu.:2033-12-17
 Max.   :2034-12-30

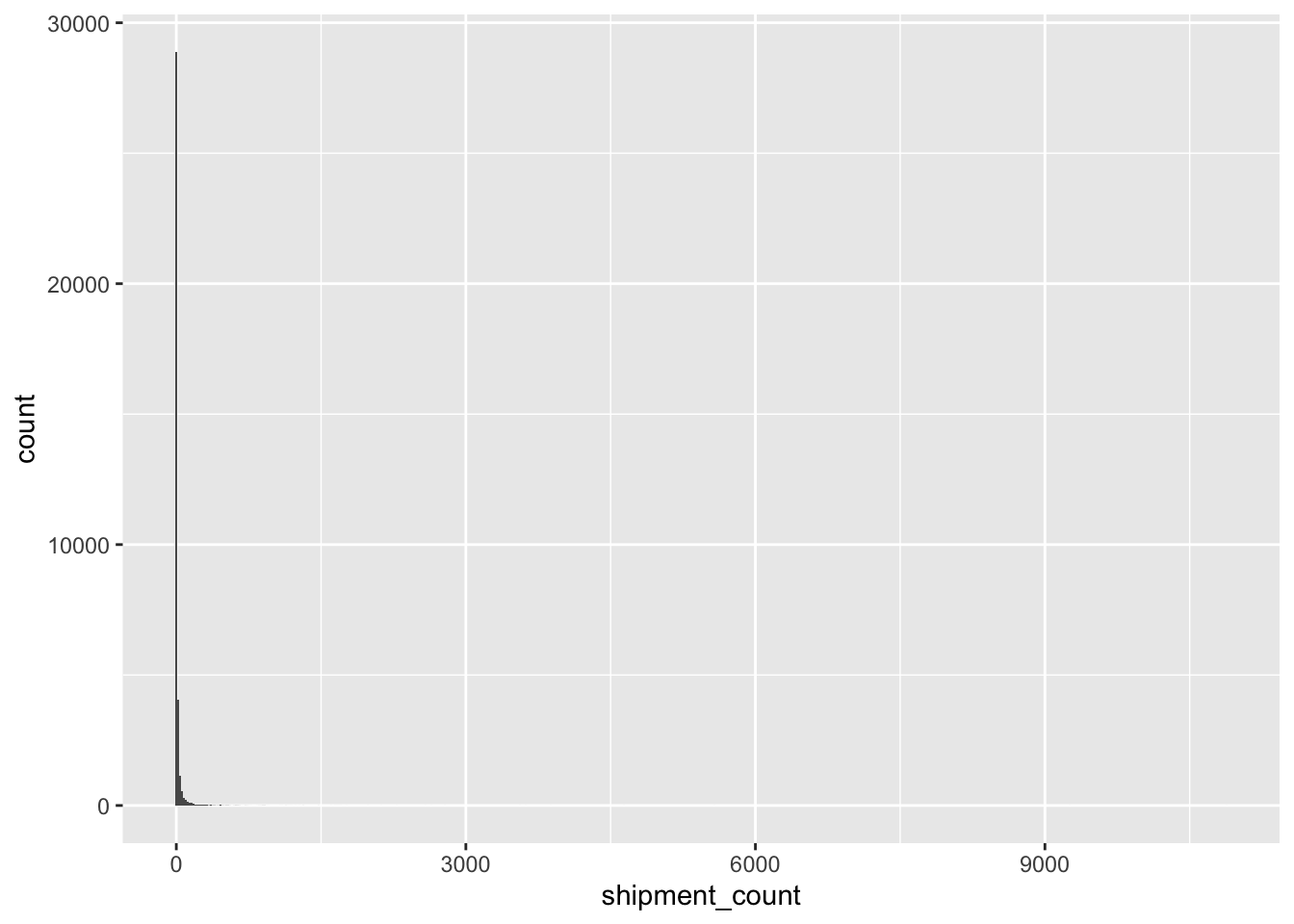

We still have close to 36,000 edges after aggregation. Let’s examine the distribution of shipment counts:

Show Code

MC2_edges_agg %>%
  ggplot(aes(x=shipment_count)) +
  geom_histogram(binwidth=20)

Clearly, the vast majority of edges have very low shipment counts. Let’s eliminate these low-count edges and focus our attention on more ‘active’ relationships:

Show Code

MC2_edges_agg %<>%
  filter(shipment_count > 20)

print(MC2_edges_agg %>% summary())

    source             target          shipment_count    arrivaldate_earliest
 Length:4157        Length:4157        Min.   :   21.0   Min.   :2028-01-01
 Class :character   Class :character   1st Qu.:   29.0   1st Qu.:2028-02-27
 Mode  :character   Mode  :character   Median :   44.0   Median :2029-01-01
                                       Mean   :  101.3   Mean   :2029-08-23
                                       3rd Qu.:   88.0   3rd Qu.:2030-10-11
                                       Max.   :10876.0   Max.   :2034-11-30
 arrivaldate_latest
 Min.   :2028-02-24
 1st Qu.:2032-04-18
 Median :2034-04-29
 Mean   :2033-06-21
 3rd Qu.:2034-11-25
 Max.   :2034-12-30

Now we are left with a much more manageable number of edges, a bit over 4,000.

4.3 Build Graph

Let’s re-extract the nodes and build our new graph:

Show Code

MC2_nodes_extracted <- MC2_nodes %>%
    filter(id %in% MC2_edges_agg$source | id %in% MC2_edges_agg$target)

MC2_graph_agg <- tbl_graph(nodes = MC2_nodes_extracted,
                           edges = MC2_edges_agg,
                           directed = TRUE)

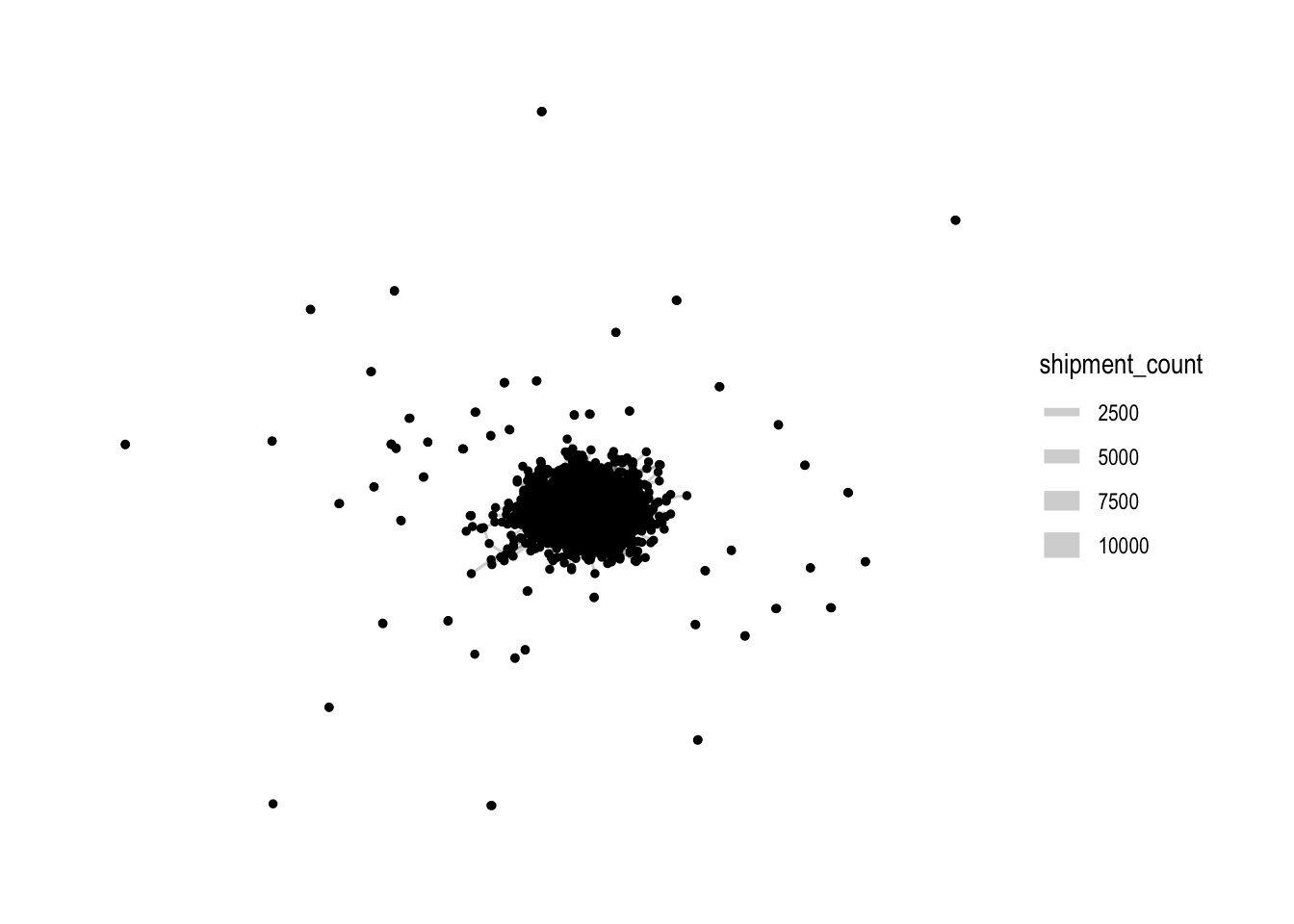

A first visual look at the resulting graph:

Show Code

MC2_graph_agg %>%
  ggraph(layout='fr') +
  geom_edge_link(aes(width=shipment_count),
                 alpha=0.2) +
  scale_edge_width(range = c(0.5,5)) +
  geom_node_point(size=1) +
  theme_graph()

Rightaway, we can see that there is one large connected component in the centre, and many other smaller disconnected components (each of 2-3 nodes). To focus our attention on the largest component, let’s extract just that:

Show Code

MC2_graph_agg %<>%
  activate(nodes) %>%
  mutate(group = group_components()) %>%
  filter(group==1)

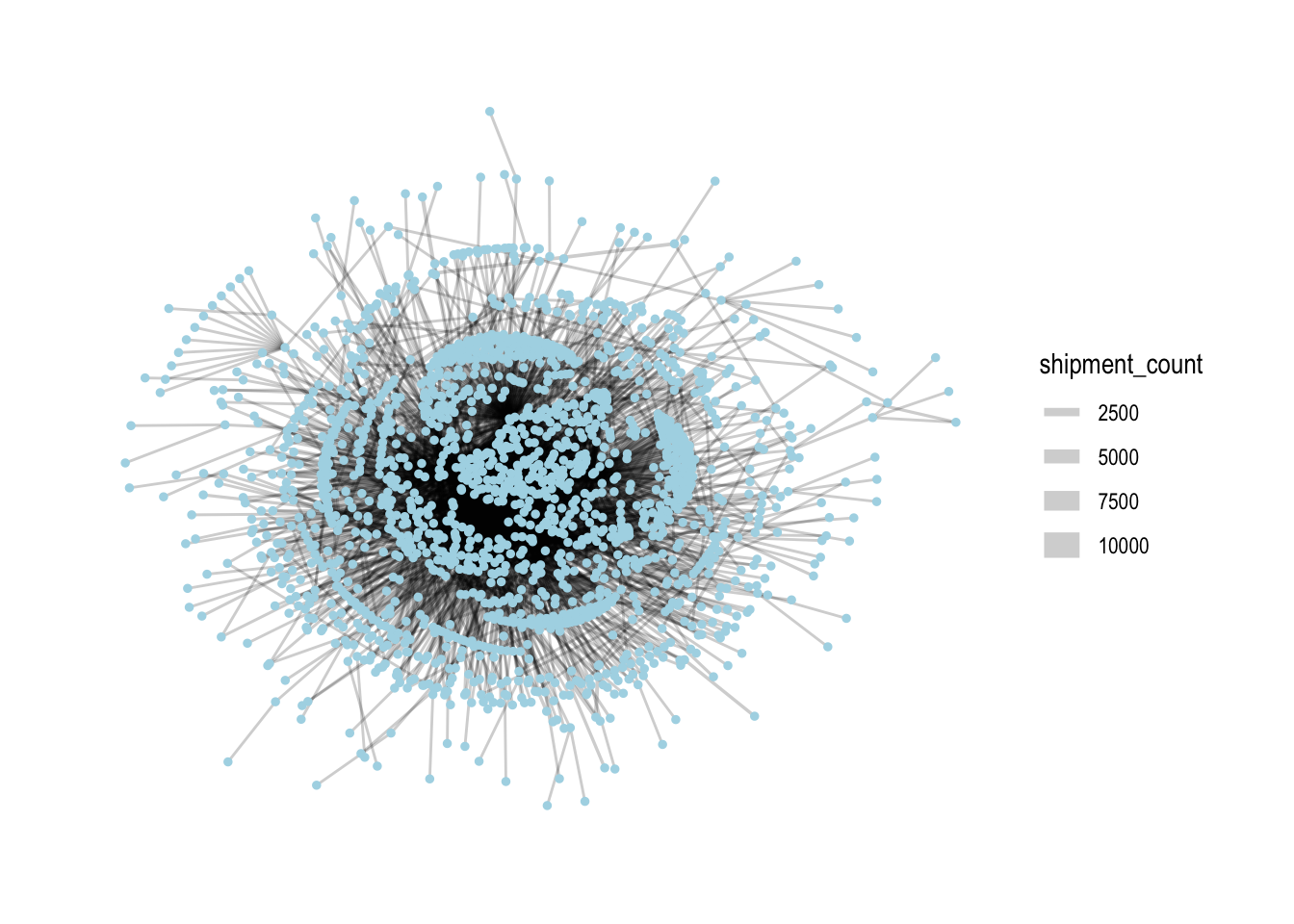

Let’s see how the graph looks like now:

Show Code

MC2_graph_agg %>%
 ggraph(layout='stress') +
  geom_edge_link(aes(width=shipment_count),
                 alpha=0.2) +
  scale_edge_width(range = c(0.5,5)) +
  geom_node_point(size=1, color='lightblue') +
  theme_graph()

From here on out, we’ll only use this subset of nodes and edges for analysis.

5 Network Analysis

5.1 Centrality

In networks, it’s common to look at the centrality of nodes as it gives a sense of which nodes are ‘important’ in a network. There are different measures of centrality. Let’s generate centrality statistics for the following:

• Degree: both in-degree and out-degree, with both unweighted and weighted variants (reflects number of counterparties and direction/total volume of shipments)

• Betweenness (reflects the importance that nodes play as ‘bridges’ between different parts of the network)

• Eigenvector (reflects importance, based on whether other important nodes connect to it)

We also calculate the ratio of out-degree to in-degree: this will help us characterise whether a company is more of a sender or receiver.

Show Code

MC2_graph_agg %<>%
  activate(nodes) %>%
  mutate(deg_o = centrality_degree(mode='out'),
         wdeg_o = centrality_degree(weights=shipment_count, mode='out'),
         deg_i = centrality_degree(mode='in'),
         wdeg_i = centrality_degree(weights=shipment_count, mode='in'),
         deg_oi_ratio = (deg_o+1)/(deg_i+1),
         wdeg_oi_ratio = (wdeg_o+1)/(wdeg_i+1),
         betweenness = centrality_betweenness(normalized = TRUE),
         eigen = centrality_eigen(weights=shipment_count))

centralities <- MC2_graph_agg %>%
  activate(nodes) %>%
  as_tibble()

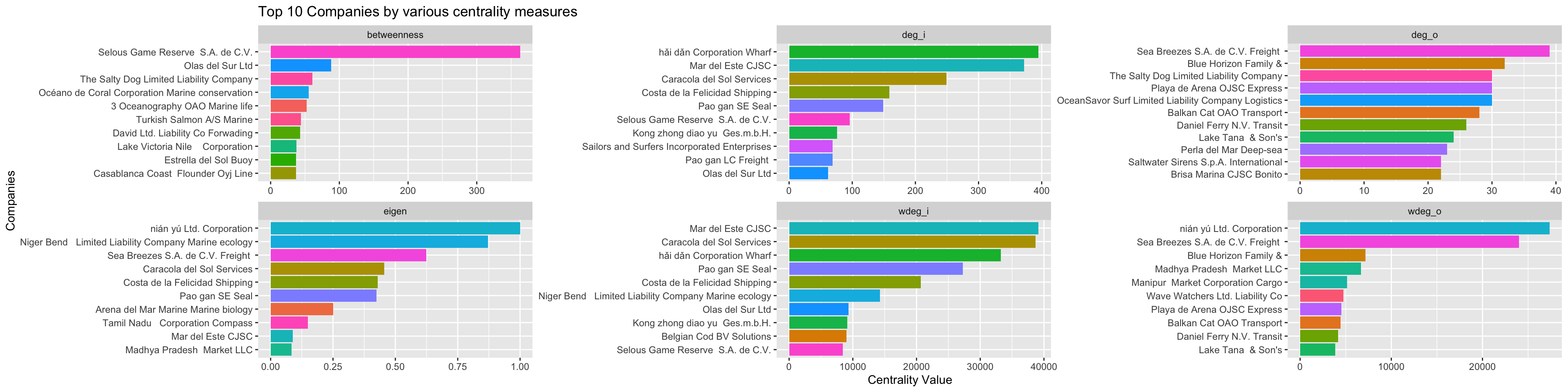

5.1.1 Top companies by different centrality measures

Show Code

top_centralities <- MC2_graph_agg %>%
  activate(nodes) %>%
  as_tibble() %>%
  pivot_longer(c(deg_o, wdeg_o, deg_i, wdeg_i, betweenness, eigen), names_to='centrality_type', values_to='centrality_value') %>%
  group_by(centrality_type) %>%
  top_n(10, centrality_value) %>%
  ungroup() %>%
  mutate(r = reorder_within(id, centrality_value, centrality_type))

ggplot(top_centralities, aes(x=fct_reorder(r, centrality_value), y=centrality_value, fill=id)) +
  geom_col(show.legend = FALSE) +
  facet_wrap(~centrality_type, scales = 'free') +
  scale_x_reordered(name = "Companies") +
  scale_y_continuous(name = 'Centrality Value') +
  coord_flip() +
  labs(title = "Top 10 Companies by various centrality measures")

As we would expect, these companies with high centrality scores are generally located in the centre of the network when we draw the network graph using a stress layout:

Show Code

MC2_graph_agg %>%
  # activate(edges) %>%
  # filter(shipment_count >200) %>%
  activate(nodes) %>%
  mutate(top10_centrality = ifelse(id %in% top_centralities$id, 'Yes', 'No')) %>%
  # mutate(component = group_components()) %>%
  filter(group_components()==1) %>%
 ggraph(layout='stress') +
  geom_edge_link(aes(width=shipment_count),
                 alpha=0.2) +
  scale_edge_width(name = 'No. of shipments', range = c(0.5,5)) +
  geom_node_point(aes(fill=log10(deg_oi_ratio), color=top10_centrality, size=top10_centrality), shape=21, stroke=1) +
  # scale_size(range = c(1,5)) +
  # scale_color_discrete(name = 'Top 10 Centrality', direction=-1) +
  scale_fill_continuous_diverging(palette='Blue-Red 3', guide='none', l1=30, l2=100, p1=0.9, p2=1.2) +
  scale_size_manual(name = 'Top 10 Centrality', values=c('Yes'=5,'No'=2)) +
  scale_color_manual(name = 'Top 10 Centrality', values=c('transparent', 'black')) +
  theme_graph() +
  labs(title = "Graph of shipments",
       subtitle = "Colour indicates whether company mostly sends (red) or receives (blue).\nHigh centrality nodes are indicated by larger size and black border.")

6 Temporal Analysis

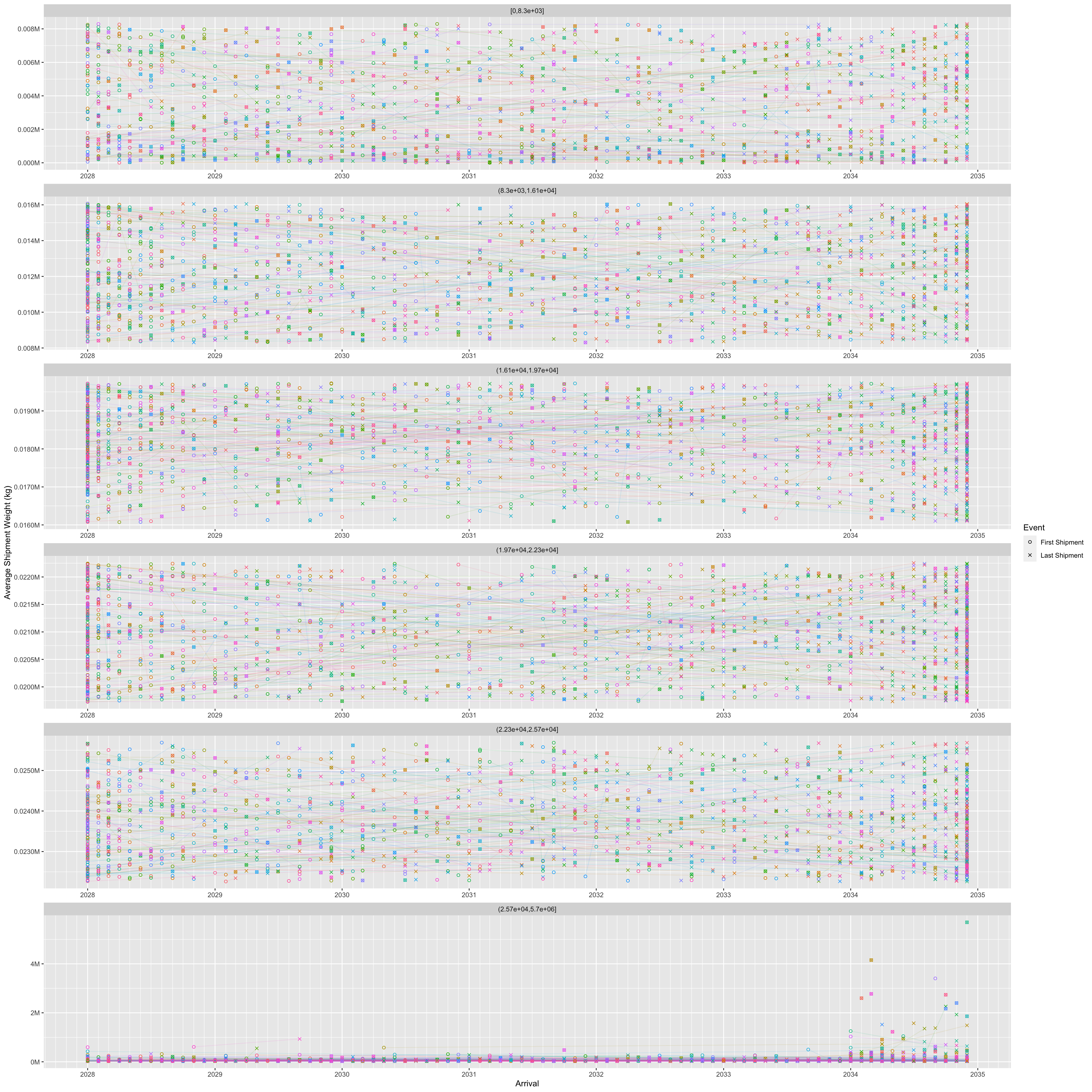

6.1 Operating Timelines of Source Companies

It was mentioned in the challenge that “companies caught fishing illegally will shut down but will then often start up again under a different name”. Here, I tried to plot the operating timelines of the companies to see if such temporal patterns can be detected. I made an assumption that in such situations, the old and new companies would be similar in scale (shipment values or volumes). Hence I put time on the x-axis and ‘operation scale’ (average) on the y-axis so that companies of similar scale would appear closer together. To avoid clutter, I only plotted the start and end months of operations, each with a different shape. Hence, proximity of two different shapes at roughly the same vertical height could indicate the described pattern.

Show Code

source_monthly_agg <- MC2_edges %>%
  group_by(source,
           arrivalmonthyear=floor_date(arrivaldate, unit ='month')) %>%
  summarise(count = n(),
            totalvalue_omu = sum(valueofgoods_omu, na.rm = TRUE),
            totalvalue_usd = sum(valueofgoodsusd, na.rm = TRUE),
            totalweight_kg = sum(weightkg, na.rm = TRUE),
            avgvalue_omu = mean(valueofgoods_omu, na.rm = TRUE),
            avgvalue_usd = mean(valueofgoodsusd, na.rm = TRUE),
            avgweight_kg = mean(weightkg, na.rm = TRUE))

source_earliest_latest <- source_monthly_agg %>%
  group_by(source) %>%
  summarise(arrivalmonthyear_earliest = min(arrivalmonthyear),
            arrivalmonthyear_latest = max(arrivalmonthyear)) %>%
  pivot_longer(c(arrivalmonthyear_earliest, arrivalmonthyear_latest),
               names_to = 'arrivalmonthyear_type',
               values_to = 'arrivalmonthyear')

source_agg_earliest_latest <- source_monthly_agg %>%
  inner_join(source_earliest_latest,
              by = join_by(source, arrivalmonthyear))

Show Code

source_agg_earliest_latest %>%
  filter(avgweight_kg < 20e6) %>%
ggplot(aes(x=arrivalmonthyear,
           y=avgweight_kg,
           group=source,
           color=source)) +
  geom_line(alpha=0.1) +
  geom_point(aes(shape=arrivalmonthyear_type)) +
  # geom_point(data=source_agg_earliest_latest) +
  scale_x_date(name = 'Arrival', date_breaks = 'year', date_minor_breaks = 'month', date_labels = '%Y') +
  scale_y_continuous(name = 'Average Shipment Weight (kg)',  labels = scales::label_comma(suffix = "M", scale=1e-6)) +
  scale_color_discrete(guide='none') +
  scale_shape_manual(name = 'Event', labels = c('First Shipment', 'Last Shipment'), values = c(1,4)) +
  facet_wrap(~ cut_number(avgweight_kg, 6), ncol = 1, scales = 'free')

Show Code

  # theme(legend.position = 'none')

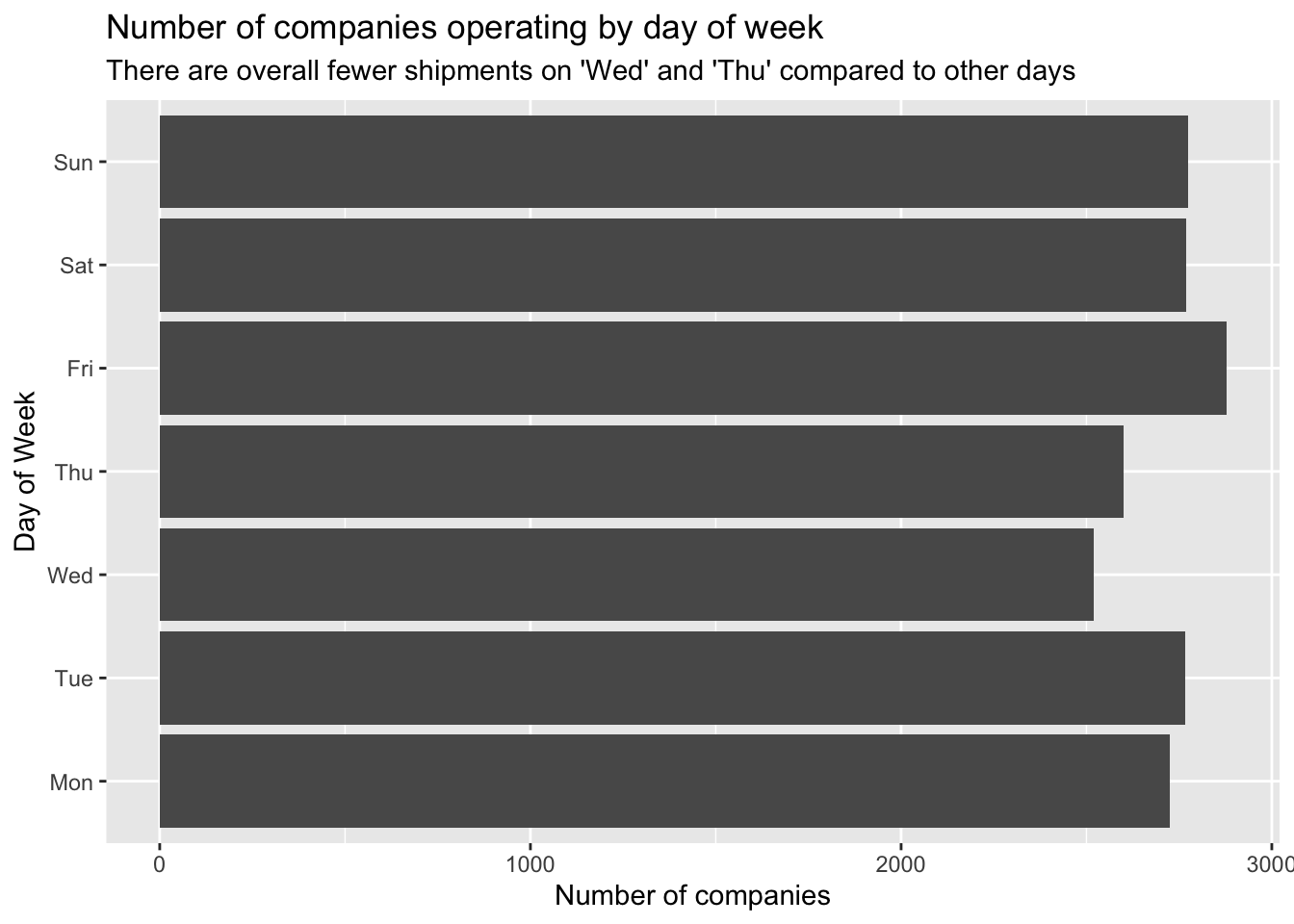

6.2 Day-of-Week Activity

Here, I wondered if companies who engage in illegal fishing might be trying to do so on certain days of the week with less shipments to lessen the chance of getting caught. Hence, I decided to examine the number of companies operating shipments by days of the week:

Show Code

MC2_edges %>%
  mutate(weekday = wday(arrivaldate, week_start = 1, label = TRUE)) %>%
  mutate(year = year(arrivaldate)) %>%
  group_by(weekday) %>%
  summarise(shipments = n_distinct(source)) %>%
  ggplot(aes(y=weekday,
             x=shipments)) +
  geom_col() +
  scale_y_discrete(name = 'Day of Week') +
  scale_x_continuous(name = 'Number of companies') +
  labs(title = "Number of companies operating by day of week",
       subtitle = "There are overall fewer shipments on 'Wed' and 'Thu' compared to other days")

It seems that there are fewer companies operating on ‘Wed’ and ‘Thu’ compared to the other days of the week. (Note that since the dates given in the data are fictitious, it might not really be Wed and Thu; they could well be Sat and Sun, i.e. the weekend.)

6.3 High-Centrality Nodes

Let’s examine the temporal patterns of the high-centrality nodes in greater detail.

Show Code

shipment_send <- MC2_edges %>%
  group_by(source,
           arrivalmonthyear=floor_date(arrivaldate, unit ='month')) %>%
  summarise(shipment_count = n(),
            totalvalue_usd = sum(valueofgoodsusd, na.rm = TRUE),
            totalweight_kg = sum(weightkg, na.rm = TRUE)) %>%
  mutate(shipment_count_type = 'send') %>%
  rename(id = source)

shipment_receive <- MC2_edges %>%
  group_by(target,
           arrivalmonthyear=floor_date(arrivaldate, unit ='month')) %>%
  summarise(shipment_count = n(),
            totalvalue_usd = sum(valueofgoodsusd, na.rm = TRUE),
            totalweight_kg = sum(weightkg, na.rm = TRUE)) %>%
  mutate(shipment_count_type = 'receive') %>%
  rename(id = target)

# test3 <- test %>%
#   full_join(test2,
#             by = join_by(source==target, arrivalmonthyear==arrivalmonthyear))

shipment_all <- union(shipment_send, shipment_receive)

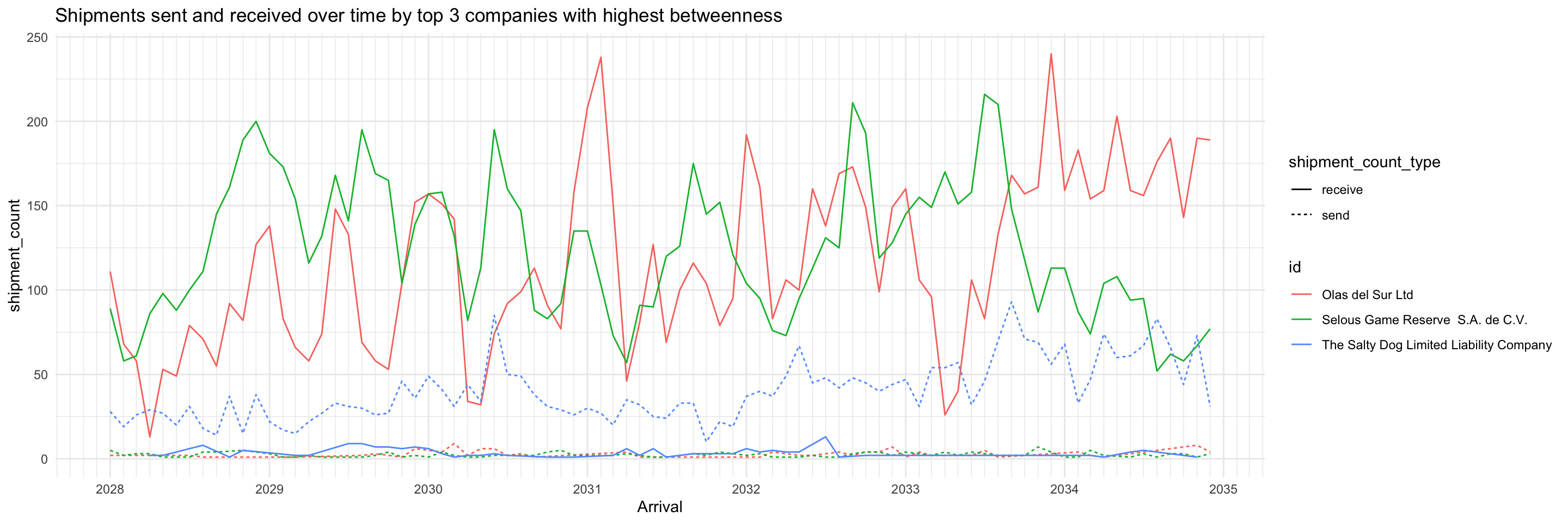

6.3.1 High Betweenness

We can see something interesting with the nodes having the top 5 betweenness centrality. They all consistently send and receive shipments throughout the months, so may be playing roles as forwarders or transshipment providers. The differences between number of shipments sent and received are fairly big. Two of them receive a lot more shipments than they send, while the third is the opposite.

Show Code

top_ids <- top_centralities %>%
  filter(centrality_type=='betweenness') %>%
  top_n(3, centrality_value) %>%
  pull(id)

shipment_all %>%
  filter(id %in% top_ids) %>%
  ggplot(aes(x=arrivalmonthyear,
             y=shipment_count)) +
  geom_line(aes(colour=id, linetype=shipment_count_type)) +
  scale_x_date(name = 'Arrival', date_breaks = 'year', date_minor_breaks = 'month', date_labels = '%Y') +
  scale_colour_discrete() +
  labs(title = "Shipments sent and received over time by top 3 companies with highest betweenness") +
  theme_minimal()

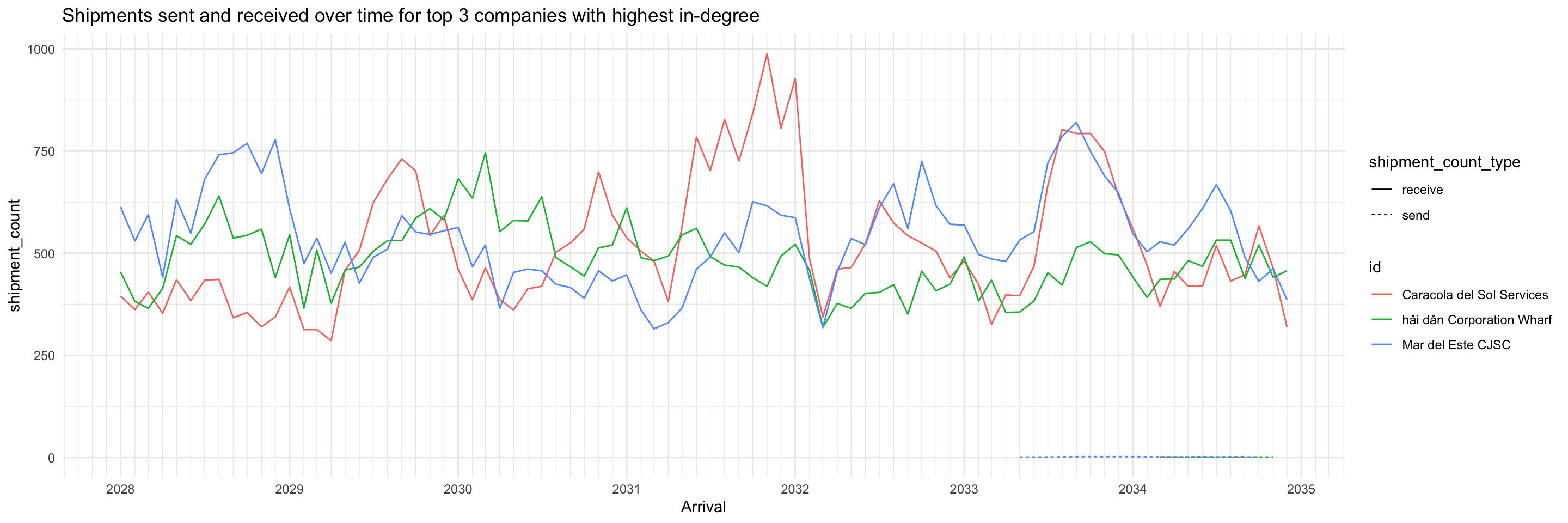

6.3.2 High In-Degree

In contrast with the high betweenness nodes, the top 3 companies with highest in-degree almost only exclusively receive shipments. This profile suggests they may be wholesalers or purchasers.

Show Code

top_ids <- top_centralities %>%
  filter(centrality_type=='wdeg_i') %>%
  top_n(3, centrality_value) %>%
  pull(id)

shipment_all %>%
  filter(id %in% top_ids) %>%
  ggplot(aes(x=arrivalmonthyear,
             y=shipment_count)) +
  geom_line(aes(colour=id, linetype=shipment_count_type)) +
  scale_x_date(name = 'Arrival', date_breaks = 'year', date_minor_breaks = 'month', date_labels = '%Y') +
  scale_colour_discrete() +
  labs(title = "Shipments sent and received over time for top 3 companies with highest in-degree") +
  theme_minimal()

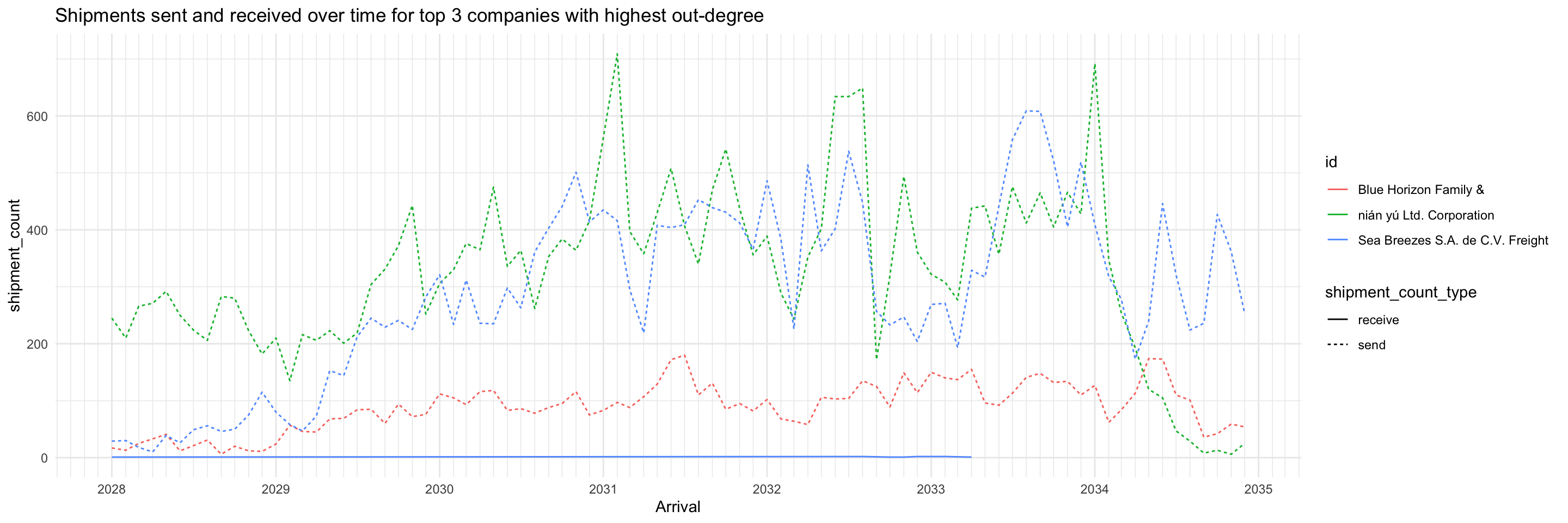

6.3.3 High Out-Degree

As expected, the opposite is observed from the top 3 companies with highest out-degree: they almost only exclusively send shipments (except for one, which had a very low volume of receiving shipments during 2028-2033). This profile suggests they may be the actual fishing companies.

Show Code

top_ids <- top_centralities %>%
  filter(centrality_type=='wdeg_o') %>%
  top_n(3, centrality_value) %>%
  pull(id)

shipment_all %>%
  filter(id %in% top_ids) %>%
  ggplot(aes(x=arrivalmonthyear,
             y=shipment_count)) +
  geom_line(aes(colour=id, linetype=shipment_count_type)) +
  scale_x_date(name = 'Arrival', date_breaks = 'year', date_minor_breaks = 'month', date_labels = '%Y') +
  scale_colour_discrete() +
  labs(title = "Shipments sent and received over time for top 3 companies with highest out-degree") +
  theme_minimal()

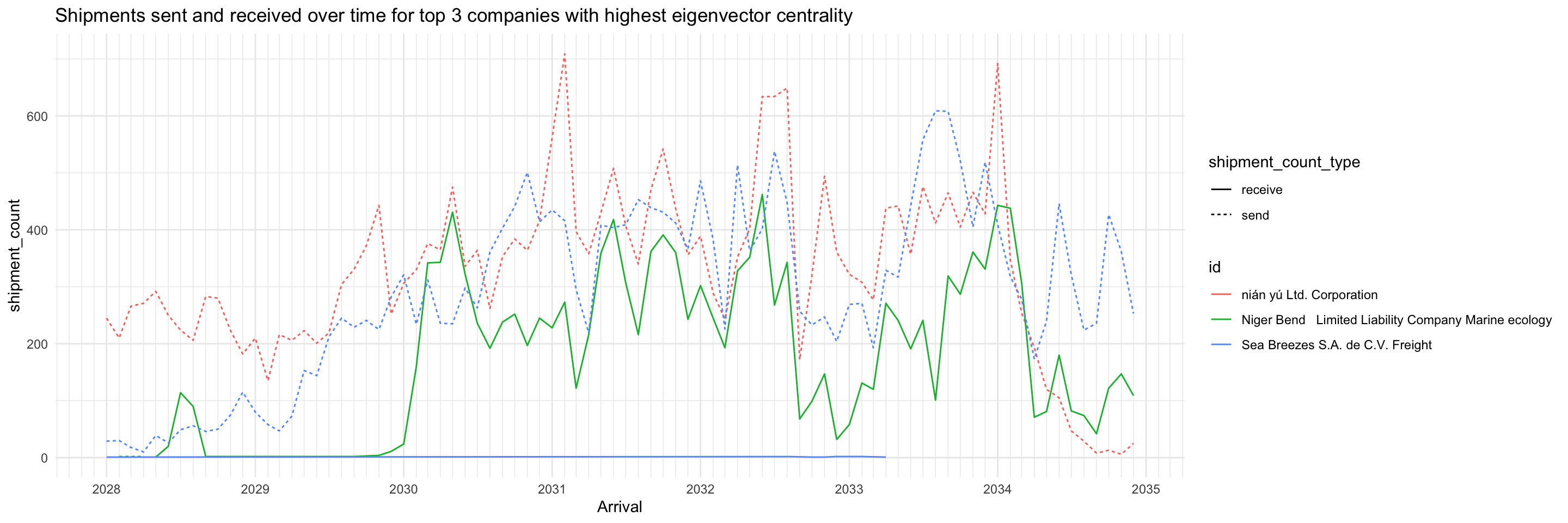

6.3.4 High Eigenvector Centrality

Of the top 3 companies with highest eigenvector centrality, two are the same as top 3 with highest out-degree. No immediate inferences can be drawn, more study is required.

Show Code

top_ids <- top_centralities %>%
  filter(centrality_type=='eigen') %>%
  top_n(3, centrality_value) %>%
  pull(id)

shipment_all %>%
  filter(id %in% top_ids) %>%
  ggplot(aes(x=arrivalmonthyear,
             y=shipment_count)) +
  geom_line(aes(colour=id, linetype=shipment_count_type)) +
  scale_x_date(name = 'Arrival', date_breaks = 'year', date_minor_breaks = 'month', date_labels = '%Y') +
  scale_colour_discrete() +
  labs(title = "Shipments sent and received over time for top 3 companies with highest eigenvector centrality") +
  theme_minimal()

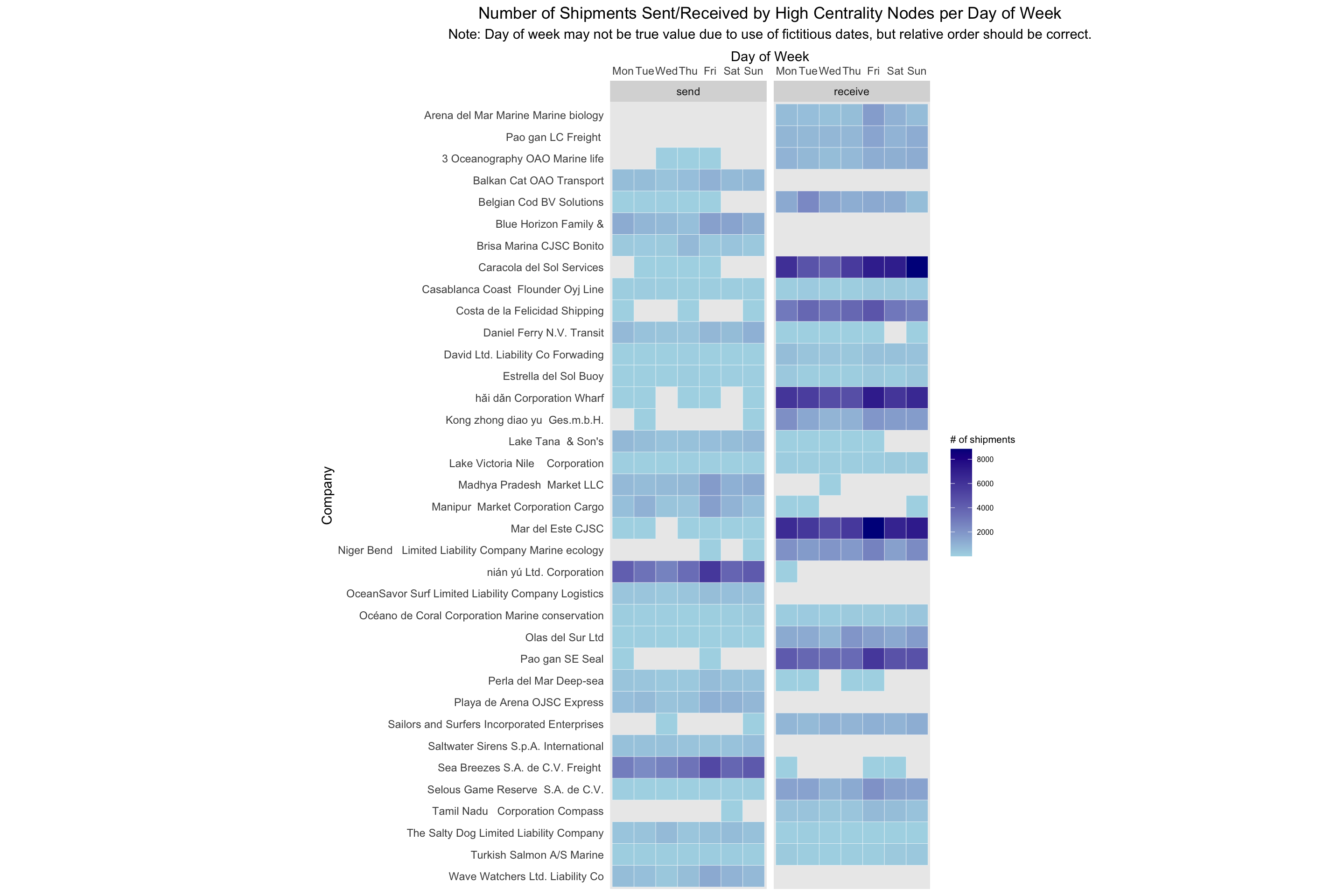

6.3.5 Day-of-Week Comparison Between High-Centrality Nodes

This heatmap shows the number of shipments sent and received by high-centrality nodes (on any measure) broken down by days of the week. It distinctly shows that for about 3/4 of the companies, they primarily send or receive but not both. For the remaining companies though, they send and receive roughly the same number of shipments throughout a week.

Show Code

top_ids <- top_centralities %>%
  pull(id) %>%
  unique()

send_weekdays <- MC2_edges %>%
  mutate(weekday = wday(arrivaldate, week_start = 1, label = TRUE)) %>%
  filter(source %in% top_ids) %>%
  count(source, weekday) %>%
  arrange(desc(tolower(source)), weekday) %>%
  mutate(shipment_type = 'send') %>%
  rename(company = source)

receive_weekdays <- MC2_edges %>%
  mutate(weekday = wday(arrivaldate, week_start = 1, label = TRUE)) %>%
  filter(target %in% top_ids) %>%
  count(target, weekday) %>%
  arrange(desc(tolower(target)), weekday) %>%
  mutate(shipment_type = 'receive') %>%
  rename(company = target)

send_receive_weekdays <- union(send_weekdays, receive_weekdays) %>%
  mutate(across(shipment_type, as.factor))

ggplot(send_receive_weekdays,
       aes(x=weekday,
           y=fct_inorder(company),
           fill=n)) +
geom_tile(color = "white",
        size = 0.1) +
coord_equal() +
scale_x_discrete(position = 'top') +
scale_fill_gradient(name = "# of shipments",
                  low = "light blue",
                  high = "dark blue") +
theme(axis.ticks = element_blank(),
      panel.grid = element_blank(),
    plot.title = element_text(hjust = 0.5),
    plot.subtitle = element_text(hjust = 0.5),
    legend.title = element_text(size = 8),
    legend.text = element_text(size = 6)
    ) +
labs(title = "Number of Shipments Sent/Received by High Centrality Nodes per Day of Week",
     subtitle = "Note: Day of week may not be true value due to use of fictitious dates, but relative order should be correct.",
     x = "Day of Week",
     y = "Company") +
  facet_wrap(~fct_rev(shipment_type))

7 Other Explorations

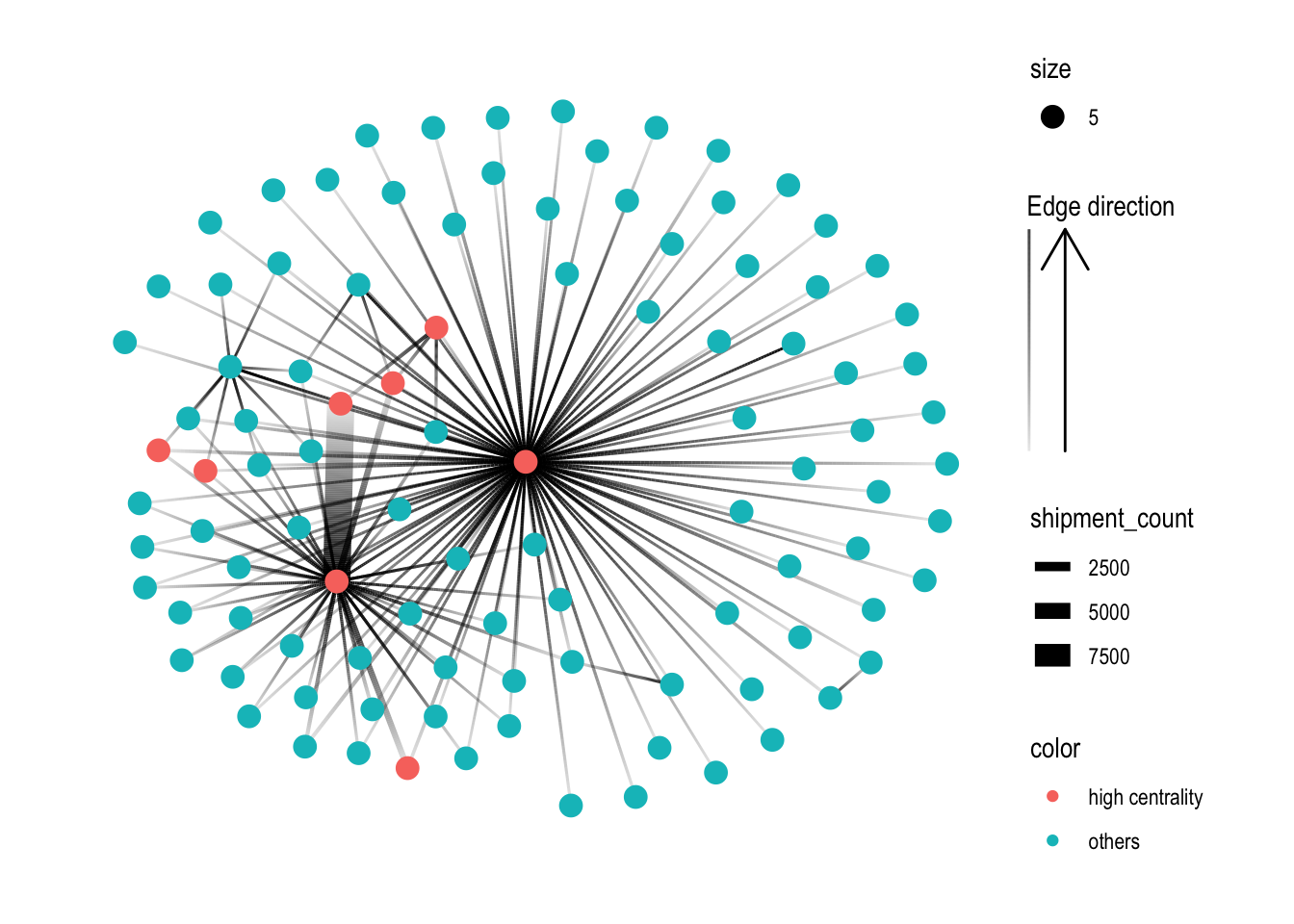

7.1 Ego Networks

Show Code

MC2_graph_agg %>%
  convert(to_local_neighborhood,
          node = which(.N()$id == 'Selous Game Reserve  S.A. de C.V.'),
          order = 1,
          mode = 'all') %>%
  activate(nodes) %>%
  mutate(color = ifelse(id %in% top_centralities$id, 'high centrality', 'others')) %>%
  ggraph(layout='fr') +
  geom_edge_link(aes(width=shipment_count, alpha=..index..),
                 ) +
  scale_edge_width(range = c(0.5,5)) +
  scale_edge_alpha('Edge direction', guide = 'edge_direction') +
  geom_node_point(aes(size=5, color=color)) +
  scale_size(range = c(0.5,5)) +
  theme_graph()

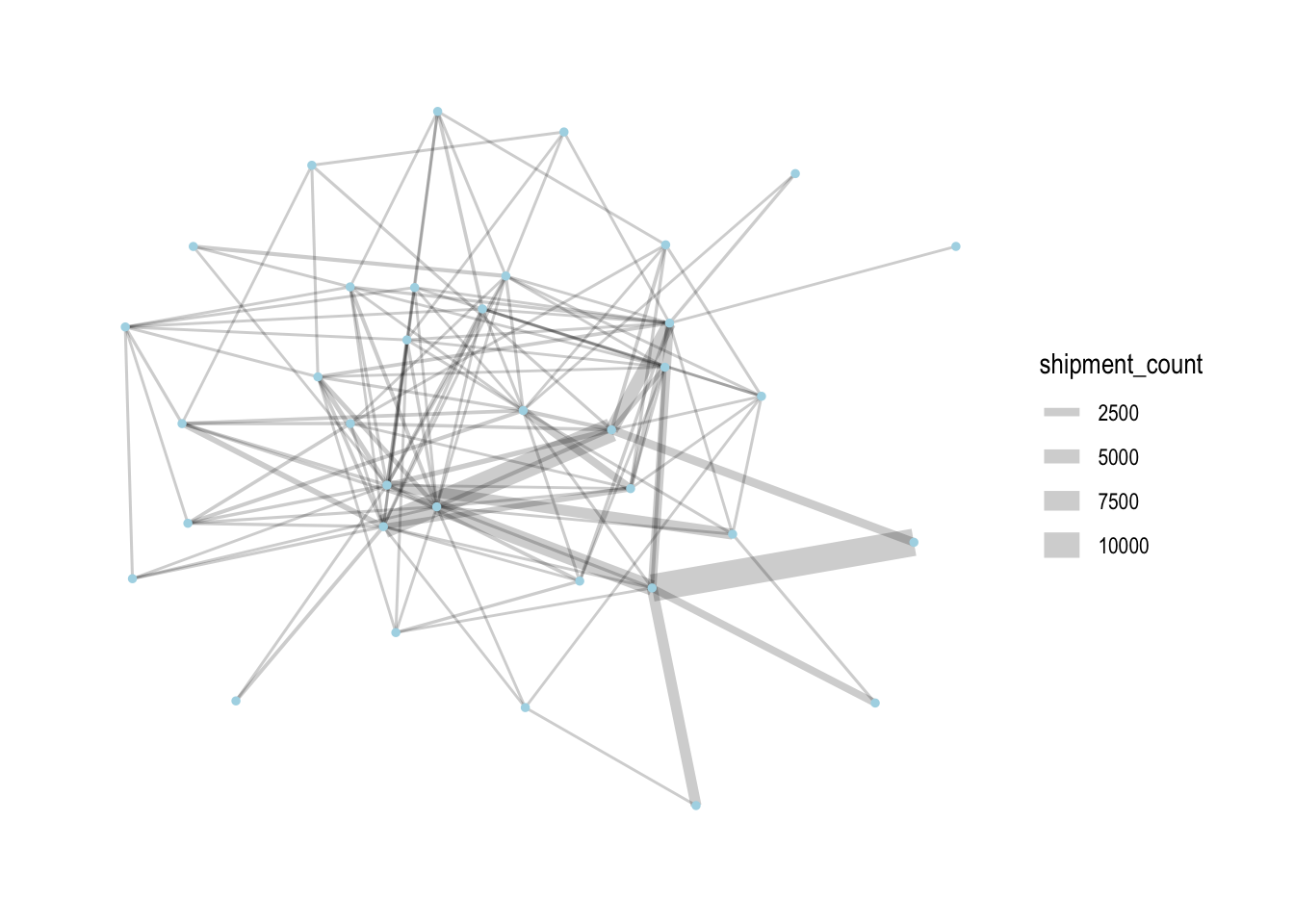

7.2 Shipments among high centrality nodes

Show Code

MC2_graph_agg %>%
  activate(nodes) %>%
  filter(id %in% top_centralities$id) %>%
  ggraph(layout='stress') +
  geom_edge_link(aes(width=shipment_count),
                 alpha=0.2) +
  scale_edge_width(range = c(0.5,5)) +
  geom_node_point(size=1, color='lightblue') +
  theme_graph()
